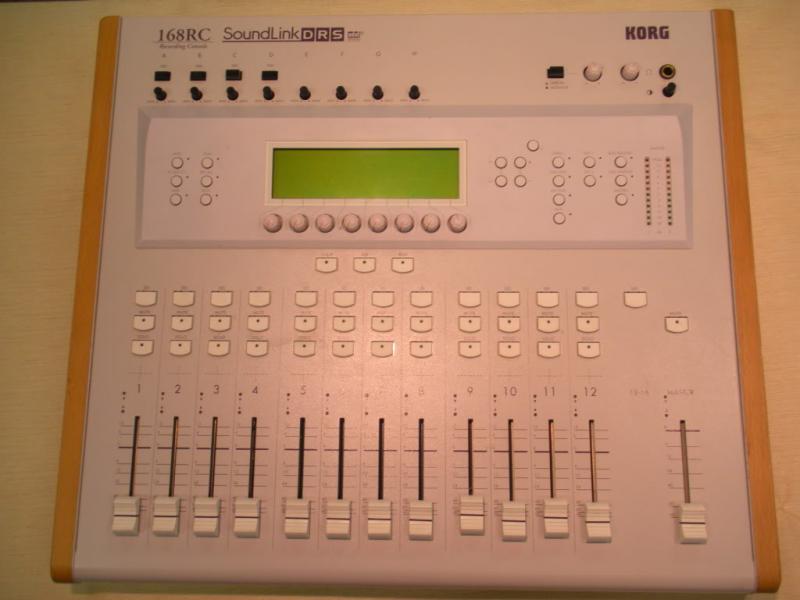

Korg 168RC Soundlink DRS Digital Recording Console
Prima Digitale Mixer , ook te gebruiken als Computer interface via ADAT I/O.
Prijs 170 Euro
24 inputs/outputs
16 channels
8 buses
2 FX's (32 effects)
24 bit 48kHz
ADAT 2x8 I/O
10 ins analog (2 xlr met fantom power)
MIDI I/O/Thru
SPDiF uit
Word clock I/O
-
EFFECTS LIST
• Small Hall 1&2
• Medium Hall 1&2
• Large Hall
• Small Room
• Medium Room 1&2
• Large Room 1&2
• Small Dry Plate
• Medium Wet Plate
• Medium Dry Plate
• Large Wet Plate
• Large Dry Plate
• Short Sharp ER
• Short Modulated ER
• Short Reversed ER
• Medium Modulated ER
• Medium Reversed ER
• Gymnasium
• Church
• Concert Hall
• Stadium
• Cave
• Canyon Wet
• Machine Talk
• Short left/centre/right Delay
• Long left/centre/right Delay
• Short & Long Mono Delay
• Modulated Delay
• Light, Medium & Heavy Chorus
• Bi-phase Modulation
• Light & Heavy Flange
• Phaser
• Ensemble
• Tremolo
• Auto Pan
• Fast & Slow Rotary Speaker
• Overdrive with Amp Simulation
• Pitch Shift
• Graphic EQ
• Enhancer
• Limiter with Exciter
• Gate with Limiter
- pros & cons KORG 168RC £2495 pros
• Full MIDI automation of all digital parameters, plus Program-based recall of snapshots.
• 16 digital inputs as standard -- more than any other mixer on the market.
• Eight high-quality (18-bit) balanced analogue inputs with insert loops and phantom power (on 1 and 2 only).
• 16 digital outputs, ideal for cascading 168RCs or using the mixer as an 8-input device
• Two high-quality effects processors.
• S/PDIF output for direct-to-DAT mixdown.
cons
• Faders not motorised.
• No S/PDIF input.
• No EQ or faders on channels 13-16.
Kan worden geleverd samen met een Emu 1212 card ( Adat I/O )
Meerprijs 125 euro
http://www.soundonsound.com/sos/1996_articles/dec96/korg168rc.html
