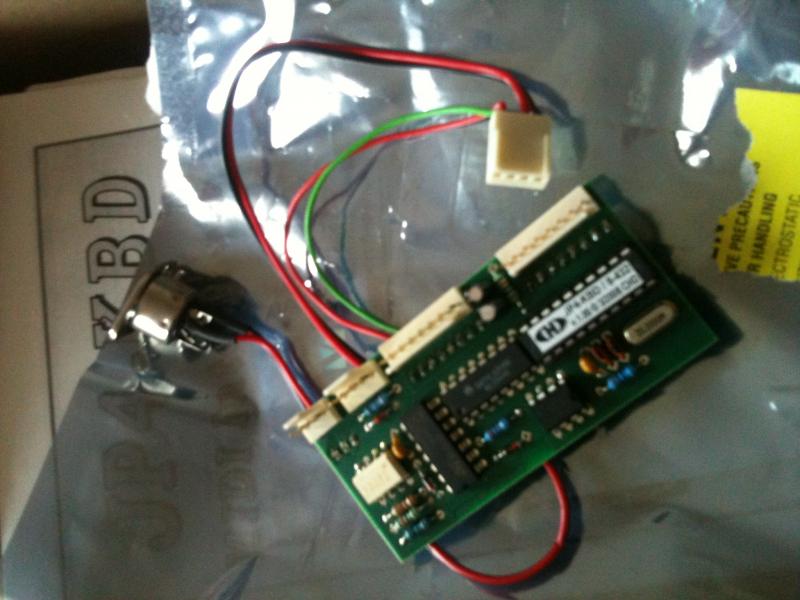

midi interface, heb m zelf maar paar keer gebruikt, bleek erg veel mogelijkheden te hebben qua aansturing arpeggio (verschillende cc's, 0 t/m 127)
Features:
Instrument's keyboard can be controlled manually and by MIDI Note On/Off commands simultaneously.
The keyboard can be transposed in whole range of MIDI notes.
Four modes of key priority can be chosen: Last / Higher / Lower / None.
Tone generators can be tuned by MIDI Pitch Wheel command. The bend range is from 0 to +-2 octaves.
Arpeggiator can be synchronized with internal tempo generator or external MIDI clock.
Number of MIDI channel for communication is user programmable. OMNI mode can be chosen, alternatively.
Default values of all parameters are user programmable - they can be stored into internal memory.
MIDI implementation - reception only:
Note On / Off
CC 16 - "Key Shift" parameter setting
CC 17 - "Key Priority" parameter setting
CC 18 - "Pitch Wheel Range" parameter setting
CC 19 - "Arpg Clock Rate" parameter setting
CC 64 - Hold
CC 120 - ASO
CC 121 - RAC
CC 123 - ANO
Pitch Wheel
System Clock
System Exclusive - setting and programming of all parameters, selection of MIDI channel
is dus getest

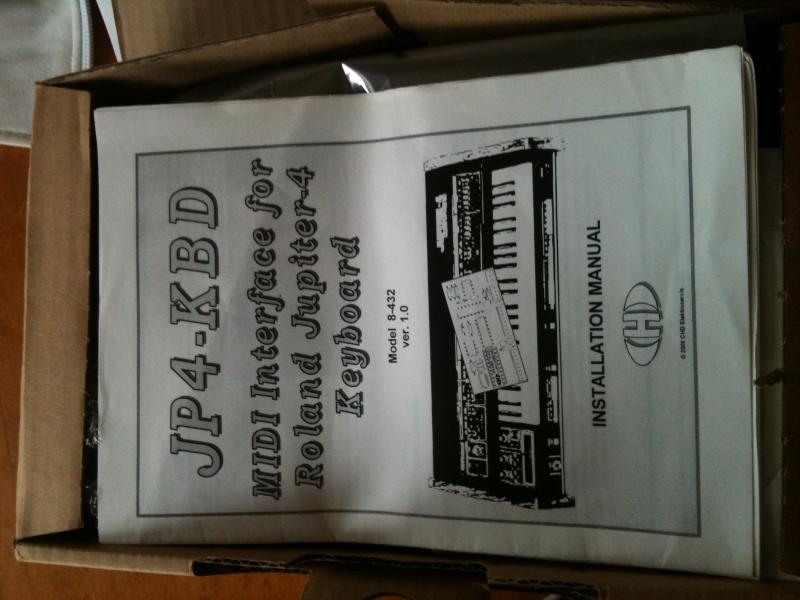

inclusief originele cd, boekjes voor installeren en gebruik
55 euro exclusief verzendkosten
