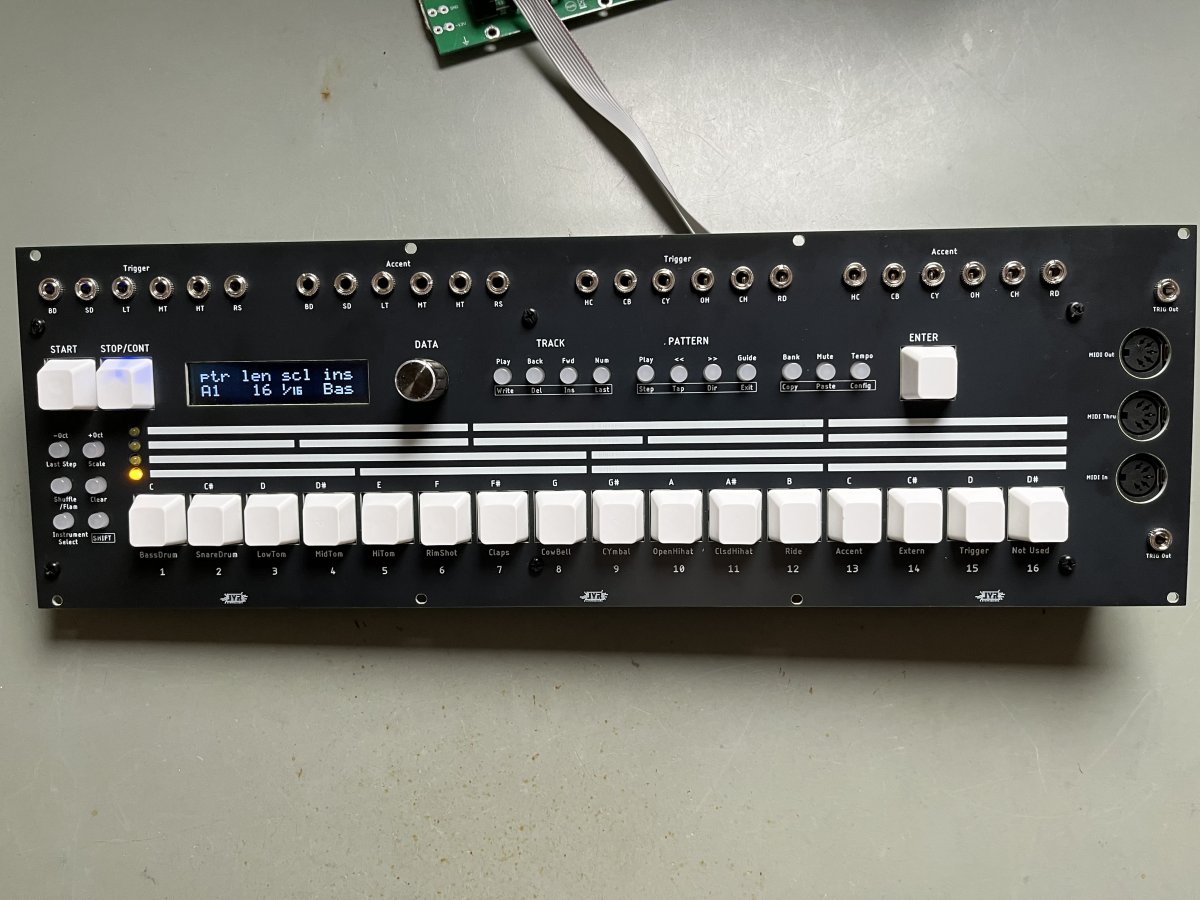

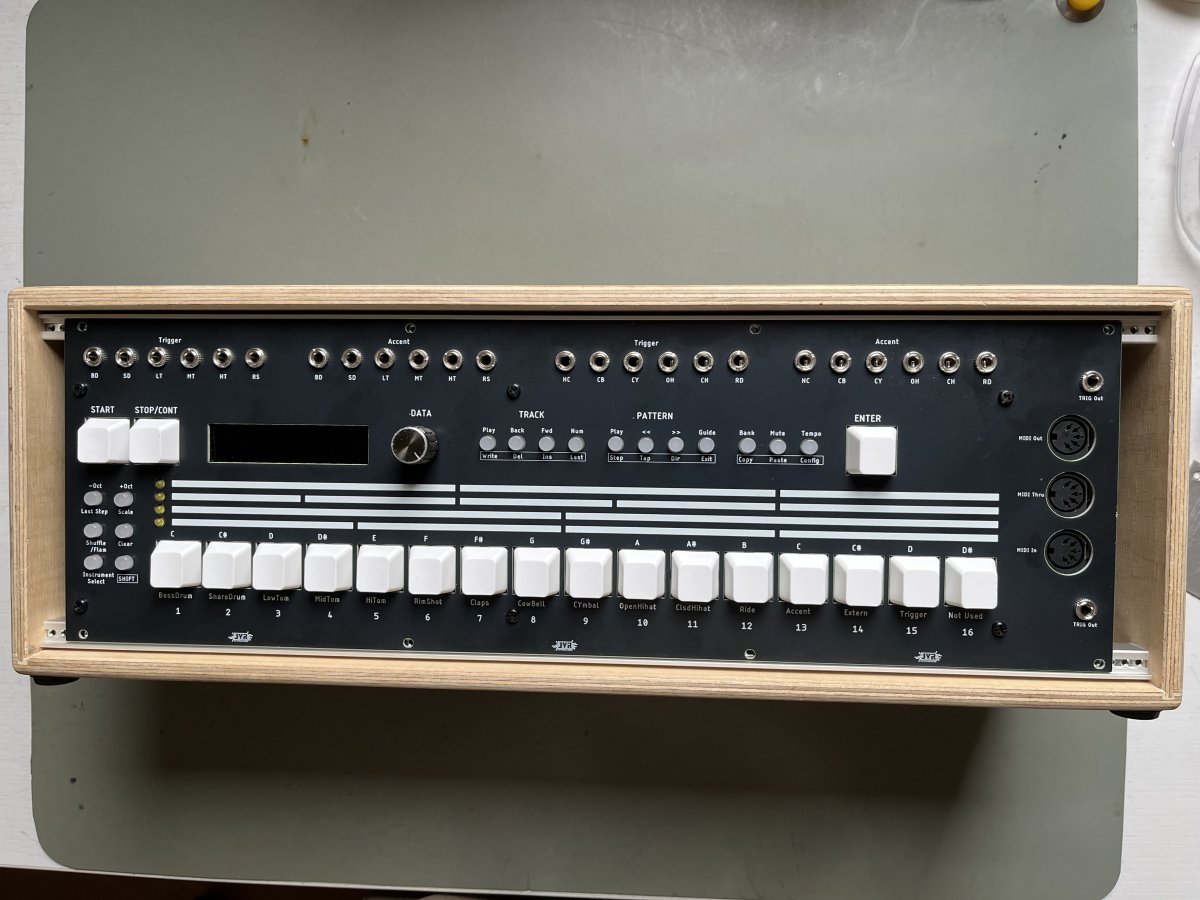

A very comprehensive Drum Sequencer. Derived from the 808 and 909 Drum Machines.
The TR Outputs are 0 to 5V (2mS) and ACC from 4-8V
Dimensions are 3U-80HP and 55mm deep.
Powercable (2x5p --> 2x8p) met schroefjes worden meegeleverd en handleiding Sequencer.
12 Instruments.Trigger outs and Accents out
A common Accent for all drums
16 banks of 16 patterns from 1 to 32 steps
16 songs of 256 patterns
2 Trig Outputs (5V S-trig ~2ms) that allow you to trigger an external instrument (an optional third Trig OUT is present on the IO Board)
MIDI IN, OUT, THRU (hardware MIDI THRU)
Din sync24 IN/OUT to synchronize other machines
Have also 808 909 Drum Modules are aviable Price are 60 to 80€ for one Module.
See on my Youtube Channel "Jos van Ras" for Demo's
