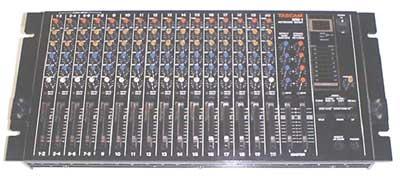

Tascam MM-1 20 kanalen mixer,19"rack formaat,excl.rackoren.In goede staat,geen kraak ,brom of ruis..ideale gigmixer voor de lichtgewicht performer...
4 stereo kanalen,12 monokanalen,direct outs, 4 effect send en return..mute,solo..led uitlezing per kanaal en op de master,hi/lo eq....en het mooiste over midi te bedienen..midi mutable,scene memories,etc..midiin,uit en thru...
In mooie staat,klein deukje aan de achterkant.......140 euro?
Of ruilen..heb hem zelf net geruild maar ik heb eigenlijk genoeg aan mijn hoofdmixer..
Te duur ?Doe een bod...wegens te dikke vingers..
Tascam keyboard mixing console.
Input: ¼" jack -50dBV, 3mV minimum 50kOhms
+12dBV, 4V maximum 50kOhms
Stereo Effects Return: ¼" jack -10dBV, 5kOhms
L/R outputs: ¼" jack +13dBu max, 220 Ohms
RCA phono +3dBV max, 480 Ohms
Direct outputs: ¼" jack +11dBV max, 220 Ohms
Equaliser: 10kHz (HF) ±12dB shelving
100Hz (LF) ±12dB shelving
Signal to noise ratio: 53dB (16 mics), 77dB (1 line)
Equivalent input noise: 111dB/118dB
Frequency response: 20Hz - 20kHz ±2dB
T.H.D: 0.03% (1kHz)
Crosstalk: 60dB
Power requirements: 240V AC, 50Hz
Dimensions:482(w) x 220(w) x 106(d)mm (racked)
430(w) x 262(w) x 120(d)mm (flat)
Weight: 5kg
20 channel (12 mono + 4 stereo) 19" rackmountable mixer. Although it is described as a keyboard mixer, it can be used with microphone sources.
Each channel comprises gain, 2 band EQ, 2 aux (4 aux busses), direct line output, mute, solo, pan, 45mm fader. Master section with Left, Right, 4 aux masters, 4 stereo fx/line returns, LED meters (L, R, MIDI), headphone, MIDI scene controls (scene memory/MIDI send & receive)
