Professionele geluidskaart voor notebook iinclusief PCMCIA CARD. Zowel PC als MAC (ook intel MAC). Stabiel en crystelclear.
8 analoog in en 8 analoog uitADAT optical I/O (switchable to SPDIF optical), SPDIF I/O coaxial, word clock I/O and MIDI I/O.
Zie specs hieronder:
Vraagprijs 449 euro, mail berry.vangardingen@akn.nl of 06-15064062.
The Hammerfall® DSP System comes with drivers for Windows 98/ME (MME with multi-client operation, ASIO 2.0, GSIF), Windows 2000/XP (fully multi-client operation of MME, GSIF and ASIO 2.0 plus ASIO multi-client), Mac OS 9.x (ASIO 2.0, OMS MIDI) and Mac OS X (Core Audio, Core MIDI).

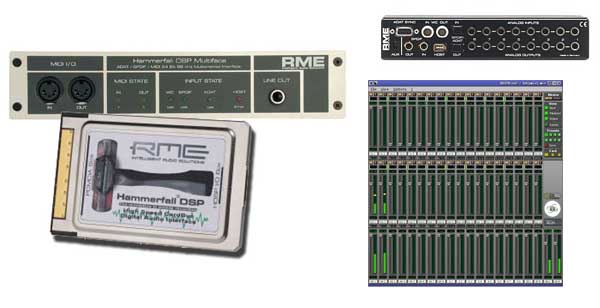

The front panel hosts some useful status LEDs, like MIDI state, lock state of the digital inputs and error state of the host-bus. Additionally there's a high-quality 24 bit/96 kHz analog line output, also usable with headphones, and one MIDI I/O.
The rear of the Multiface shows unrivalled connectivity: 8 analog line I/Os on 1/4" TRS jacks (balanced, 24 bit/96 kHz), ADAT optical I/O (switchable to SPDIF optical), SPDIF I/O coaxial, word clock I/O and MIDI I/O. Don't settle for less!
The Multiface II can be used with laptops as well as desktop computers. The connection to notebooks is achieved via a CardBus card, the connection to desktops via a PCI card. These interfaces are sold separately.
Just click on the hammer symbol in the systray of the taskbar and the settings dialog of the Multiface comes up. The clear structured, easy to understand window plus the unique informative status windows for input signal, clock mode, sample rate and time code make your work with Hammerfall DSP System to a real pleasure. With a simple mouse click you gain access to the full power of your system.
When working with several digital sources it is not only necessary to know if these are properly locked, but also if they are totally synchronized. RME's exclusive SyncCheck checks all input signals and displays their actual state, and thanks to our new Intelligent Clock Control concept you have all clocks and states under control - with ease.
Regular firmware and driver updates ensure the Multiface II to stay at the top of today's audio interfaces. The latest addition, Disconnect mode, lets you use the unit as stand-alone AD/DA-converter, digital format converter, analog/digital mixer or submixer, and much more.
THE CARDBUS INTERFACE
For the Hammerfall DSP I/O-boxes Digiface, Multiface and RPM, RME have developed a world-exclusive PCMCIA type II card in Zero wait state CardBus Busmaster technology. With up to 130 MB/s transfer rate in both directions the same basic performance is provided on a notebook as a PCI card would offer on a desktop computer. Additionally the card offers highest compatibility by being 100% Plug & Play compatible under Windows and Mac OS, and being able to share interrupts. The card itself will only use one interrupt (IRQ) for all functions (audio/MIDI.)
The connection between CardBus card and I/O-box is established using ordinary FireWire cable (6-pin IEEE 1394a). The data transfer does not use FireWire protocol, but a proprietary bus protocol by RME. The supplied cable has a length of 4.5 m (15 ft.), a cable length up to 10 m (33 ft.) has been tested successfully. The CardBus card does not provide power to the attached I/O-box. Therefore a compact and light-weight
