best wel off topic ,maar iig

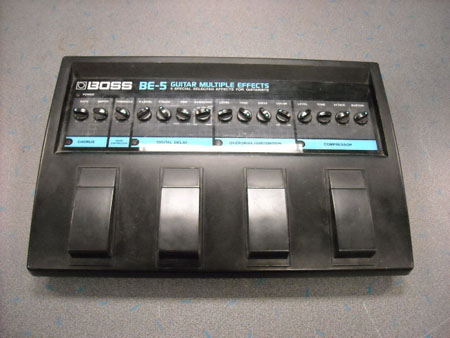

tip de boss be 5
net niet meer analoog ...wel 4x pedals ina floor unit
http://image64.webshots.com/64/9/46/94/391094694pjipfy_ph.jpg
wat info betreffende de boss micro series
http://www.bossarea.com/other/bmr5.asp
t rack waarze in kunnen

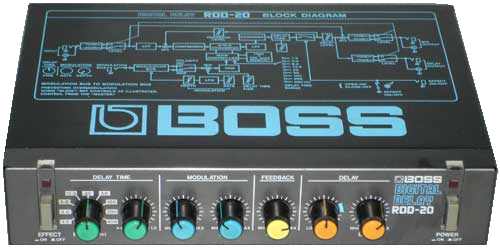

mn delay rdd10 hey eris ook een rdd20
http://www.bossarea.com/other/rdd20.asp
RDD-10 Digital Delay
Boss Micro Studio Series Vol.1, 1986:
Studio Quality Digital Delay For the Ultimate Refinement of Basic Performances
Achieving true recording studio quality sound, the RDD-10 digital delay was specially developed to realize the ultimate in basic performances. At the heart of this machine lies the determining factor for the high quality of sound it delivers a high-performance 12-bit PCM system plus analog logarithm compression. The delay times for the RDD-10 are purposely restricted to the most practical range between 0.75-400ms to avoid the sacrifice in sound quality that extra-long delay times entail. The result is an outstanding frequency response, perfectly flat all the way to 15kHz. So now you can create sharp, impressive delays, flanging, doubling and chorus effects, all with the greatest sound quality available. The RDD-10 also has a Delay Tone control for subtly varying the sound. Capable of delivering it all-from intense effects which make optimum use of the unit's superior frequency response to an analog-like mild echo, the RDD-10 perfectly matches any instrument to create a truly wide range of sound effects.
Controls
DELAY TIME:
RANGE selects a delay time in 9 steps from 1.5 to 400ms, with FINE allowing continuously-variable adjustments over a X0.5 - X1 range. Combin�ing these two controls will allow you to set a very precise delay time anywhere in the range between 0.75-400ms, enabling an astonishing variety of effects to be produced.
MODULATION:
RATE controls the LFO modulation speed while DEPTH sets the depth of LFO modulation. This control is effective when creating flanging and chorus effects.
FEEDBACK:
This decides the number of times the delay sound is to be repeated. If set to the MIN position, a single delay can be obtained.
DELAY:
TONE will set the tonal characteristic of the delay sound, from a sharp, biting sound to one that's mild. LEVEL will determine the proportion of direct and delay sound.
Point Of Performance
A major feature of the RDD-10 is the built-in DELAY TONE control for creating a tremendous diversity of sounds. Rotate the knob clockwise for a sharper effect with treble emphasis. A softer natural sounding echo will be the result of a counter clockwise setting. For a deeper echo effect, set the DELAY TONE control at a setting slightly lower than a normal setting. This will prevent the delay sound from adversely effecting the direct sound. Fig. 1 is a setting for producing a chorus effect. Adjusting the DELAY TONE lets you increase the range of available sounds. Fig. 2 depicts the setting for creating a long echo sound that's perfect for single note guitar and synthesizer soloing. To key to maximizing the potential of this setting is to match the delay time to the music's tempo, making use of the DELAY TIME FINE control. With an electric bass, the addition of a short single delay of approximately 20ms will produce the double tracking ettect so favored by Jaco Pastorius. By thickening the sound and making it more metallic, this setting really brings out the best in a chopper playing style.
Trick & Shock
This might sound rather surprising, but try connecting a DP-2 pedal switch, FS-1 foot switch or a FV-60 volume pedal directly to the MODULATION BUS jack (for the FV-60, use the output jacks). This will allow the RDD-l0's delay time to be adjusted or the MODULATION DEPTH control to be switched on/off by operating the pedal. Different settings for the DELAY FINE and MODULATION DEPTH controls will generate variations during pedal operation, a most interesting effect for live performing.
dit was betereffende de 12 bit fx van boss
rdd10
...nu al
Ook erg leuk....een BOSS GT8. Ook erg leuk bij je synth
