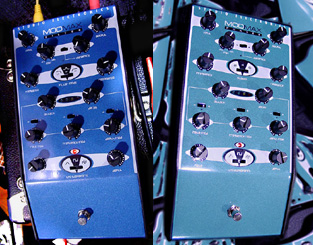

Studio Electronics heeft weer eens wat effectjes op de markt gebracht namelijk de ModMax serie.
Het gaat hierbij om een Filter, een Phaser en een RingMod. Ze kosten allemaal $359. Allemaal weer een heel mooi design, met veel knoppen.
SPECS:
13 potmeters:
1) Wide range input for guitars and instruments
2) Level balancing output
3) Effect mix 100% dry to 100% wet
4) Mix dynamics for positive and negative modulation of effect level
5) ModMax F I L T E R: Filter cutoff frequency; ModMax R I N G M O D: Carrier wave frequency; ModMax P H A S O R: Filter sweep frequency
6) Resonance
7) Envelope follower attack
8 ) Envelope follower release
9) LFO rate
10) LFO depth
11) LFO rate dynamics with positive and negative modulation
12) LFO depth dynamics with positive and negative modulation
13) Filter frequency dynamics (with positive and negative switch)
6 slide switches:
1) Effect Soak for serious effect level distortion
2) ModMax F I L T E R: Filter mode: low pass, band pass, or high pass
ModMax R I N G M O D: Carrier waveform: triangle, sawtooth, or square
ModMax P H A S O R: Number of stages: two, four, or six
3) FIlter dynamics polarity: + or -
4) LFO rate range: normal to audio frequency
5) LFO trigger: normal, one shot (for auto-wah), envelope key trigger
6) LFO waveform: triangle, square, or sample and hold
Face plate necessities:
Effect on/off footswitch with relay bypass
LFO rate LEDs
4 LED envelope threshold indicator)
Back panel jacks:
Input, Output, Filter CV in, Power Entry Module for external auto switching 9VDC power supply
SE kennende uiteraard weer Analoog..
Deze informatie is afkomstig van de studio electronics site: http://www.studioelectronics.com/products_ModMaxFilter.php
Het gaat hierbij om een Filter, een Phaser en een RingMod. Ze kosten allemaal $359. Allemaal weer een heel mooi design, met veel knoppen.
SPECS:
13 potmeters:
1) Wide range input for guitars and instruments
2) Level balancing output
3) Effect mix 100% dry to 100% wet
4) Mix dynamics for positive and negative modulation of effect level
5) ModMax F I L T E R: Filter cutoff frequency; ModMax R I N G M O D: Carrier wave frequency; ModMax P H A S O R: Filter sweep frequency
6) Resonance
7) Envelope follower attack
8 ) Envelope follower release
9) LFO rate
10) LFO depth
11) LFO rate dynamics with positive and negative modulation
12) LFO depth dynamics with positive and negative modulation
13) Filter frequency dynamics (with positive and negative switch)
6 slide switches:
1) Effect Soak for serious effect level distortion
2) ModMax F I L T E R: Filter mode: low pass, band pass, or high pass
ModMax R I N G M O D: Carrier waveform: triangle, sawtooth, or square
ModMax P H A S O R: Number of stages: two, four, or six
3) FIlter dynamics polarity: + or -
4) LFO rate range: normal to audio frequency
5) LFO trigger: normal, one shot (for auto-wah), envelope key trigger
6) LFO waveform: triangle, square, or sample and hold
Face plate necessities:
Effect on/off footswitch with relay bypass
LFO rate LEDs
4 LED envelope threshold indicator)
Back panel jacks:
Input, Output, Filter CV in, Power Entry Module for external auto switching 9VDC power supply
SE kennende uiteraard weer Analoog..
Deze informatie is afkomstig van de studio electronics site: http://www.studioelectronics.com/products_ModMaxFilter.php
