SSL: Nucleus

[JohnDoe36]

Solid State Logic heeft gister de Nucleus gepresenteerd.

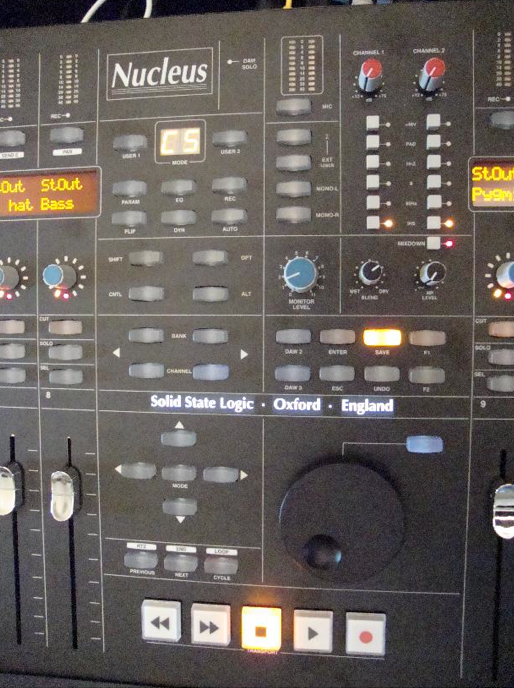

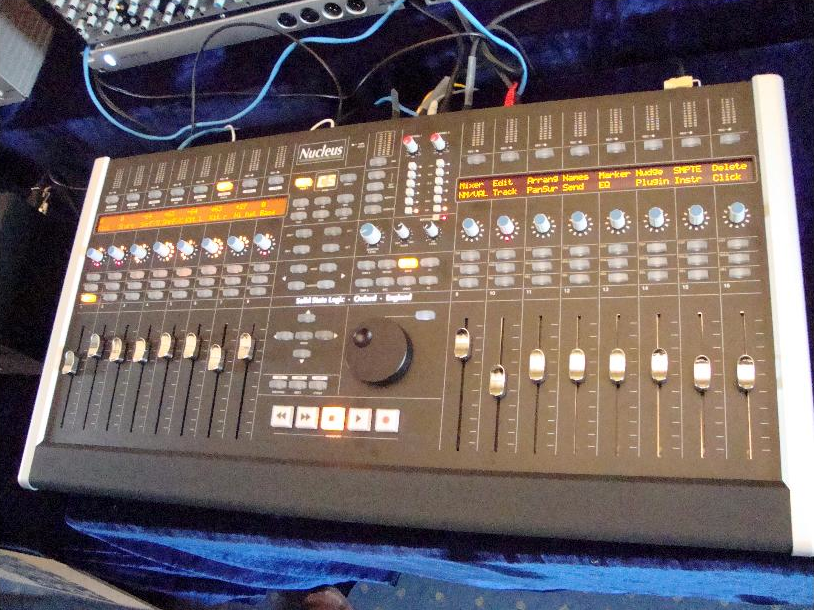

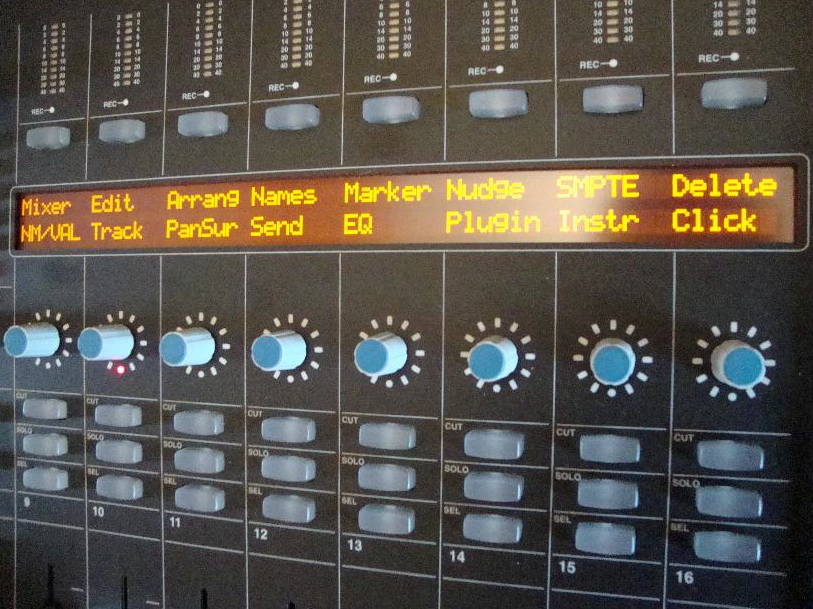

Op dit moment zijn er slecht 3 foto's die ik kon vinden. (daarom nog geen voorpagina nieuws)
Ze zijn met een telefoon gemaakt en moeten dus nog ff geduld hebben tot SSL de site update met meer info.

Wat tot zover bekend is: (post van gearslutz, mss ook sf lid???)

"It's a 16 fader DAW controller, with 2 mic preamps.

It has sophisticated control of your DAW, with of course the faders, but also with rotary knobs. And yes: there is a flip function!
Above the faders there are displays which can show you parameters of your plugins (also 3rd party, automapping), you can do really fast adjustments on your plugin compressors, EQ and so on. The faders are really high quality. The overall unit looks very nice and slim, it won't cover your whole place.

It's also possible to create your own shortcuts, for instance CUT, COPY, PASTE or AUDIO MIXDOWN, so you can create your own controller. Not as sophisticated as with the Euphonix MC Pro, but I think everybody can program most of his needs on these controls.

Of course there's a transport section as you can expect, with joy dial and so on. Also there are zoom function buttons, as you see on other controllers.

The controller connects to the computer via Ethernet and uses HUI protocol to communicate with your DAW of choice.

The unit also has 2 main audio (XLR) outputs to your speakers and at the back there are 4 USB inputs, which your computer will automatically scan."
http://www.gearslutz.com/board/5887887-post63.html

Vandaag zijn er nog 2 presentaties:
http://www.waxflowers.nl/images/SSL_on_tour.jpg

om 11:00u
@ SSL Duality Studio Audioworkx, Breestraat 9, 5528AA Hoogeloon www.audioworkx.nl
om 17:00u
@ Pro Shop Waxflowers, Industrial Area "De Mars", Litauensestraat 6D, 7202CN Zutphen www.waxflowers.nl



[JohnDoe36]

iets meer info

"Imagine a Matrix without the analogue summing. That's what Nucleus is - all the dedicated EQ and Dyn buttons, all the assignable softkeys, HUI and MCU, stereo AD/DA, plus 2 SuperAnalogue mic pres and a monitor section. Plus, Duende Native channel strip and Bus Comp will be included."
http://www.gearslutz.com/board/5890618-post140.html



[Motoko]

Erg jammer dat er dan weer twee pre-amps in zitten die het geheel weer prijzig maken. Ik had liever gezien dat ze een directe controller hadden gemaakt voor de Duende plugins. Het lijkt nu een beetje er tussenin hangen, er is ook geen meter-bridge als ik dat zo zie.

Nou ja, maar even wachten wat er verder nog komt en misschien eerst maar's testen in de praktijk alvorens weer allerhande commentaar te geven ;-)



[Johndoe11]

main outs en USB? dit is dus ook tevens een soundcard?



[JohnDoe36]

main outs en USB? dit is dus ook tevens een soundcard?

Volgens mij wel voor zover ik begreep uit Jim zijn post op gearslutz

Dus 2 maal i/o waarvan de inputs ook als pre amp gebruikt kunnen worden denk ik zo.



[Pimpampeter]

Heb het ding vandaag gezien. Ziet er wel geinig uit, en heeft veel handige features voor producers, zoals een hele rits assignable knobs, waarmee je heel veel shortcuts in je DAW programma kunt maken. Persoonlijk zal ik t ding nooit kopen, maar das meer omdat t mijn geluidskaarten geen meerwaarde geeft, en ik niet geloof in een doos met schuiven. Je moet t zien als een euphonics faderdoos met leuke features, wat mij betreft.

De X rack vond ik dan weer interessanter! Zeker met de nieuwe stereo eq. Prijstechnisch begint t zeker de moeite waard te zijn daarin te investeren.

Die Duality die ze bij soundworkx hebben staan, is trouwens wel heeeeeeeeel erg vet en groot...



[fourier]

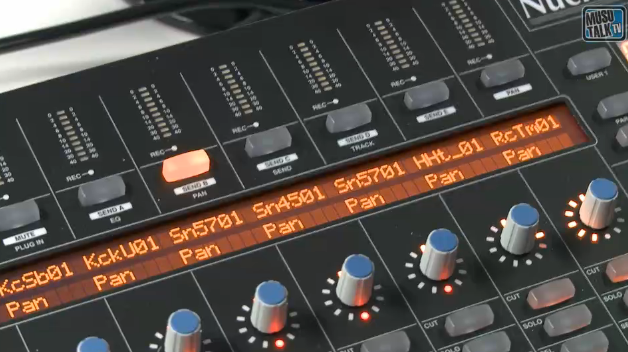

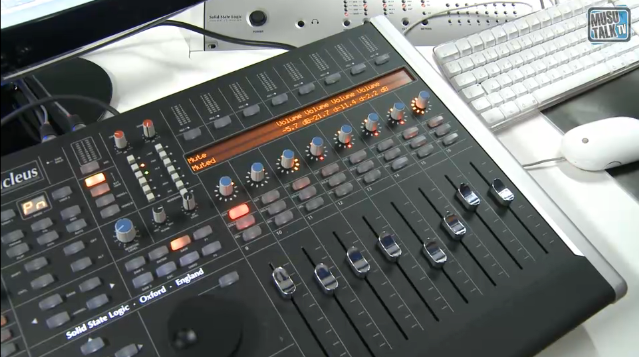

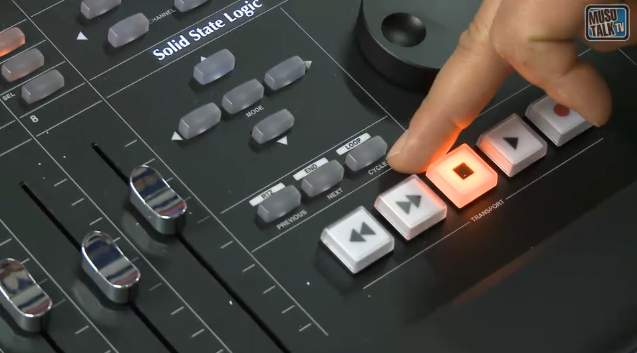

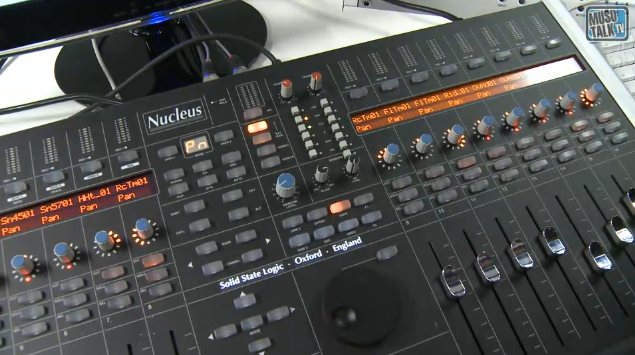

Hij gaat €3999,- kosten. Hier een introductie filmpje:

http://www.musotalk.de/event-reports/video/article/ssl-nucleus-controller-mit-audiointerface-und-plugins/



[JohnDoe36]

From the video:
- This is a prototype, not 100% ready
- It's a controller + some extra stuff
- 2 superanalogue mic pres (without VHD circuit)
- Inputs are Mic/Line/Inst
- Integrated USB interface
- Dry/Wet is to adjust between DAW output and Analogue input to the monitor section
- Balanced inserts for inputs or mixdown, switchable
- 2 pairs of monitors with volume control
- 2 Headphone outputs
- 4x USB hub
- motorized, touch sensitive faders
- spdif i/o (mic pres ->spdif out)
- extra stereo line input
- MCU protocol
- HUI protocol for PT + PT shortcuts assigned to certain buttons
- Map plug-ins to encoders, flip to faders
- Release Noveber
- Est. price 3999,999 €
- Duende Native will have a sw protection that is not ilok



[JohnDoe36]

Nucleus: the center of your audio environment professional. Nucleus redefines studio professional model with a perfect synergy between station control digital audio recording, Listening SuperAnalogue ™ totally transparent analog microphone preamplifiers, high class, USB audio interface, professional quality collection of Plug-Ins Native SSL Duende.

There is no other product on the market that offers sound engineer / producer all these professional elements, audio performance with the highest quality and usability of a total elegance. Nucleus is not only a unique product, it offers an Excellent value. These items purchased separately would cost much more, without having synergy.

Nucleus is a compact, portable format "a small console" 16 ways. It offers a comfortable environment, efficient and ergonomic use fully integrated stations Record digital audio-related applications music and post production film / TV. It gives you everything you need to record and play your audio and to manage and check your registration station audio quickly and efficiently, without having to use your mouse. Nucleus optimizes your work and lets you focus on your sound and not on your screen. The control section of your station Nucleus Registration is based on concepts developed for SSL Matrix.

You can simultaneously connect up to 3 stations Record audio and spend several from one to another with a single push of a button. Nucleus uses HUI protocol or MCU, you ensuring full compatibility with all digital audio recording applications, including Pro Tools, Logic and Cubase / Nuendo and can transmit MIDI CC data. Nucleus offers you a complete collection of settings assignable and easily customizable Depending on your preferences, for all parameters main DAW and your Plug-Ins. Two banks of eight channels offer each: the 100-mm motorized faders, and buttons V-Pot encoders fully assignable buttons Dedicated (Select / Solo / Cut) and displays at channel and channel 10 segment. The central section of the Nucleus offers: Settings transport large and hyper-resistant, a Jog Dial / Shuttle high quality settings bank select / channel / layer and settings selection of navigation / global parameters of the station registration, as well as keys and buttons USB keyboard simulation.

The bright LCD displays, the displays of audio level of the digital station, and keys illuminated buttons and LED status indicators to you guarantee an excellent visual display of information, even in an environment lighting sieved. The system configuration is done through the browser distance "Logictivity SSL," which allows you to load and save various collections of setting groups. It is precisely in this section that is defined for the user, Operating Nucleus.

The Nucleus offers unique audio capabilities. At the basis, we use a signal path such as SSL SuperAnalogue ™, offering a quality audio listening Legendary become the benchmark, with connections separate outputs to 4 dBu and -10 dBV.

The USB audio interface offers a high quality stereo recording and playback with your DAW. Two inputs combined XLR / Jack 6.35 mm mic / line / instrument can supply the same time audio interface and monitor output Monitor.

The I / O digital S / PDIF feed Converters AD / DA audio interface (pre-insertion), offering both a journey recording, digital to station digital audio, and a signal path, signal mic / line / instrument to output digital audio. A control wet / untreated for the determination of level of the analog input signal (and digital) and the reading level of the DAW for listening entirely absent from latency.

The mic preamps are preamps Nucleus SSL SuperAnalogue ™ micro identical to those used on SSL Duality consoles and AWS and our X-Rack ... which gives the Nucleus its Quality professional in the way of registering signals from the microphone. Its microphone inputs are equipped with high pass filters 80 Hz, and reverse switches and phasePhantom Power. It also offers connections from / to insert return integration of your analogue effects processors or on mic / line / instrument, but may be placed on the readout station digital audio mixdown. A stereo input 'External' offers additional viewing trip Analog transparent to another audio interface, or other analog equipment.

You have a display output level precision analog. A base stereo mini-jack 3.5 mm can listen to the signal from an iPod or any other portable player. Two headphone outputs are complete the listening options. The Nucleus system connects to your computer Ethernet to high speed control of your recording station. It also offers a USB connection and displayed on your host computer as a standard keyboard that allows emulation of the most important commands.

There are four USB ports at the rear, allowing you to use the system as a USB hub. A Jack for connecting conventional contactor foot is also present. There is also a SD card slot, allowing you to save / load your profiles. Configuration and the allocation of control functions to keys and buttons for controlling the recording station are done by the browser "SSL Logicitivity" which allows you to save and load different configurations assignments controls.

We could have stopped there, but we chose to provide the Nucleus of an element: it comes with the collection of Duende Plug-Ins Native Essentials. This collection includes new versions Duende Native Plug-Ins VST / AU / RTAS SSL Channel EQ & Dynamics and Stereo Bus Compressor. EQ Plug-In & Channel Dynamics offers the classic way of mixing SSL console channel strip with parametric correction 4-band compressor / Expan-maker / Gate, and filters highpass and lowpass. Duende Plug-In Native Bus Compressor brings the sound (in the form of Plug-In) famous stereo bus compressor legendary
analog consoles range of G-1980s.

General Characteristics:
* 1. Recording station controller digital audio via Ethernet - the studios Professional models now have a new reference
* 2. Compatible with ProTools, Logic, Cubase / Nuendo and The main applications for registration audio
* 3. Possible selection of one of 3 stations recording audio with a simple keypress
* 4. Two banks of 8 channels of control plus Settings section in the center
* 5. 100 mm motorized faders, touch sensitive
* 6. LCD display with function names encoders and assignable buttons
* 7. Assignment commands and digital station Fully customizable keyboard
* 8. Browser / remote offering Logictivity Effortless configuration
* 9. SD card for saving and loading
* 10 projects. Heavy duty transport keys to large wheel and jog / shuttle high quality
* 11. Excellent visual display of information by buttons and illuminated buttons, LEDs and displays levels
* 12. Single audio control center, located in the heart of your studio models
* 13. Audio outputs high quality SuperAnalogue ™ separated and for Levels 4 dBu and -10 dBV
* 14. USB audio interface with high-quality stereo path playback and recording of your station Digital Audio
* 15. Two inputs combined jack / XLR upgrade mic / line / instrument for the audio interface and Monitor outputs
* 16. Input / Output Digital S / PDIF connected directly to the AD / DA converters interface Audio
* 17. Listening free of registration latency controlled wet / Treaty between the input and the signal from the DAW
* 18. SSL mic preamps SuperAnalogue ™, identical to those used on the SSL Duality consoles and AWS
* 19. Mic inputs with high pass filters at 80 Hz, reverse phase and phantom power.
* 20. Connector insertion / return assignable the inputs or the output reading of the digital station on mixdown
* 21. Signal path SuperAnalogue ™ 'external' additional use of another interface Audio
* 22. Two headphone outputs and an input of listening iJack
* 23. Login to standard footswitch Jack 6.35 mm
* 24. Four USB ports for use in 4-port USB hub

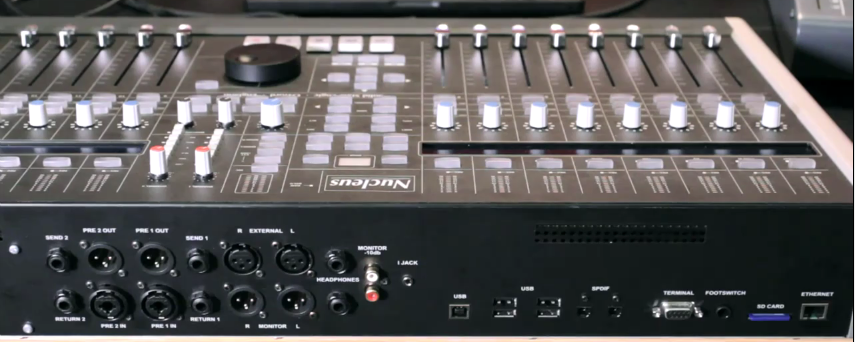

Snapshot van de achterkant uit de volgende youtube video



[Sander02]

Pfoeh de berekenende hollander in mij zegt.. da's een hoop geld voor een controller met 1 paar i/o, bedenkende dat de controller functies overneemt die al aanwezig zijn in je DAW en dus niets nieuws toevoegt behalve gebruiks-comfort. 4K EU alleen voor gemak en comfort.. nee dank u, doe me dan maar een muis.. dan schaf ik voor 4K liever iets aan wat geluid voortbrengt of op andere wijze een welkome toevoeging geeft aan geluid.

Toegegeven, het ziet er wel 'slick' uit.. dat dan wel.

edit: bovenstaande bezie ik als hobbyist, bedrijfsmatig en 'terugverdienbaar' zou ik zo'n controller wél verwelkomen..



[Fles]

Eens met Sander02. Het slaat een veel te groot gat in het budget voor iets dat vooral uitblinkt in in de weg staan. Kansloos.



[MOTIFFF]

ik vind hem niet mooi hoor. er zijn ook goede controllers euphonix artiest series niks mis mee ! aangezien de nucleus niks doet met geluid of niks voegt in het geluid zie ik geen reden om eentje aan te schaffen.
