univox sr-95

[gianni]

Hi ,
I need a courtesy from you.

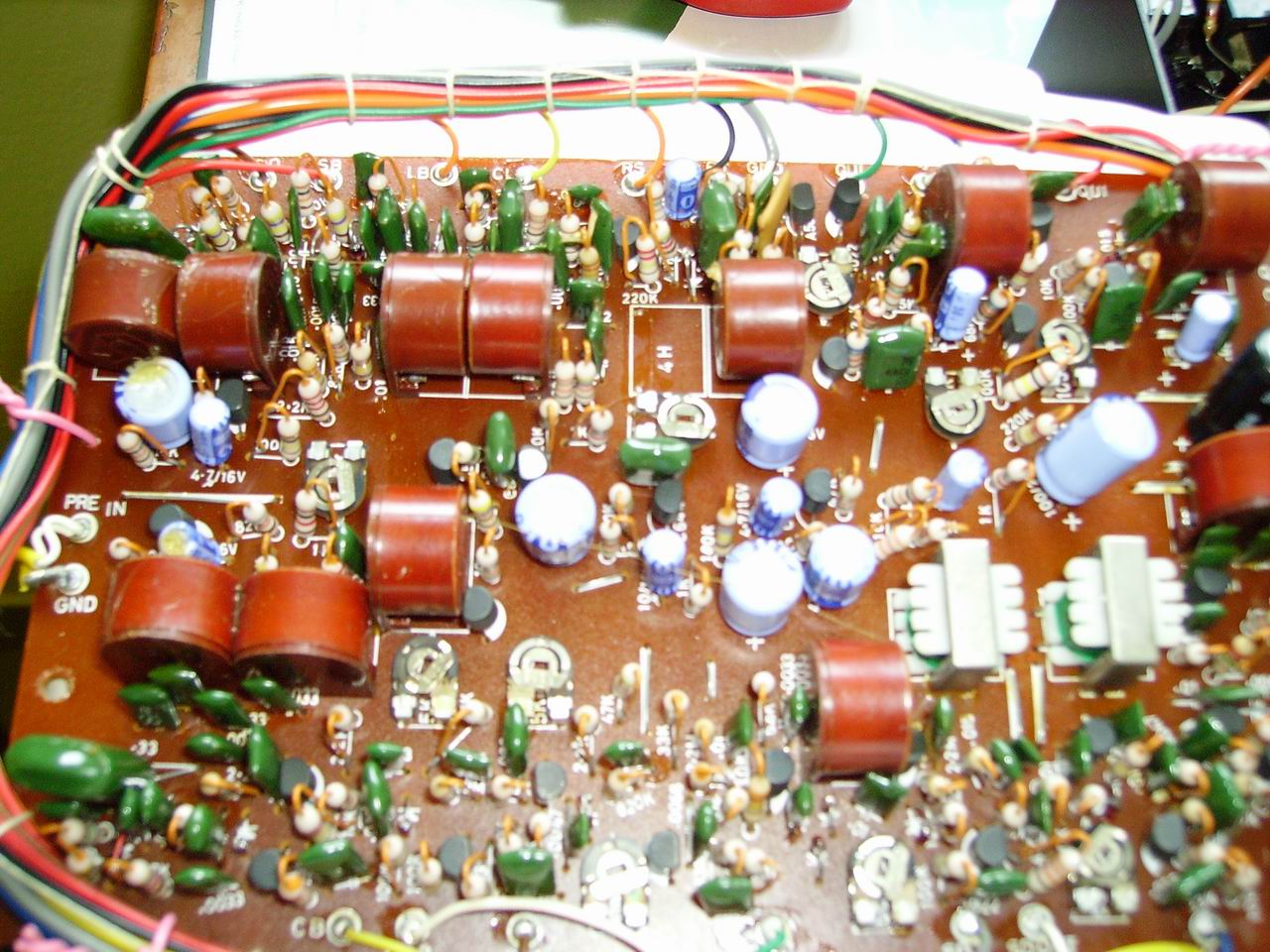

In attachement there is a picture of the inside the univox.

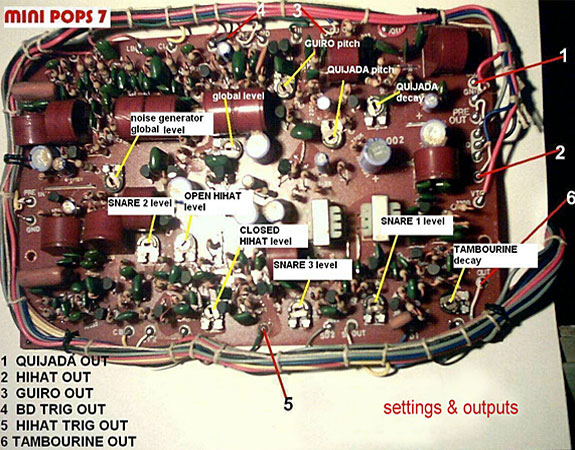

if you look the circuit the univox the component H4 there is not, in the minipop 7 there is ( picture your minipops 7).
can you say me something?
the drumcomputer work, but i don't understand.
best regards
thank you very much
gian


:confused:



[wouw]

Have a look at this thread:
https://www.synthforum.nl/forums/showthread.php?t=70386&highlight=minipops

The univox differs from the minipops in sound and patterns. The missing coil is not the only difference !
