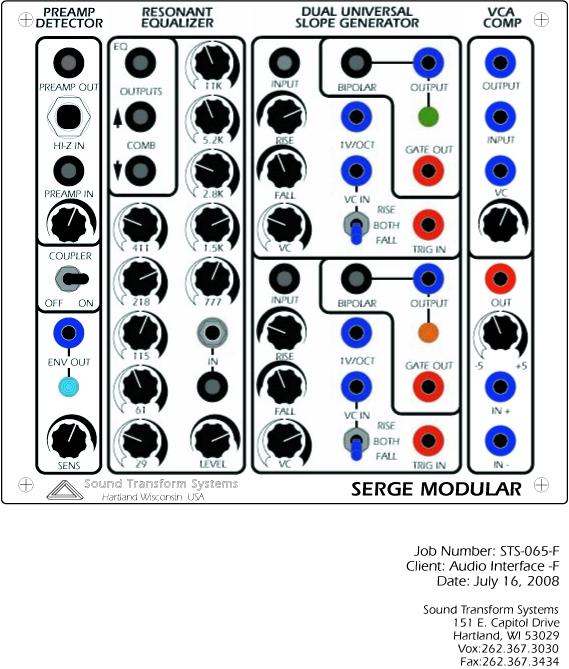

Zo en weer een M-odule op de markt.
FF een quote van de Serge list:
It features frequency format curve envelope detection with VC up/down linear slewing. Also variable exp/log shaping of the detected signal.
It includes a DC coupled VCA for control loop feedback of the envelope signal or for AM encoding the detected & slewed CV out. It's also useful for pre- or post-EQ signal AMing.
The comparator is useful for deriving level detected Gate Output or for deriving pulse trains from audio signals (pre- or post-EQ) and triggering the DSG.
Of course, DSG can be used as a complex VC LFO or OSC with frequency controlled by envelope detected audio signal (pre- or post-EQ), for example.
Finally, the Resonant Equalizer, which has received much glowing praise on this list over the years, completes this indispensable M-odule.
The Audio Interface is available with Hi-Z Balanced Input [DID] by means of 'XLR' and/or 1/4" t-r-s via the M-boat rear panel. (Lo-Z input transformer is also available)
$1,700 (Balanced Input option + $150) / (Lo-Z transformer add $150)
?
